Threaded caps are the unsung heroes of the 3D-printing world—small, unassuming, and yet capable of turning a meticulously crafted bottle or jar into a functional masterpiece. They’re the difference between a prototype that leaks and one that seals with the precision of a Swiss watch. Yet, for all their importance, modeling a threaded cap in CAD software can feel like navigating a labyrinth of concentric circles, helical threads, and tolerances that seem to shift like desert sands. Why does something so seemingly simple demand such intricate attention? Perhaps it’s because the devil, as they say, is in the details—or in this case, the threads.
Threaded caps aren’t just about aesthetics; they’re about engineering. A well-modeled cap ensures a snug fit, prevents leaks, and maintains structural integrity under pressure. But here’s the catch: if you’ve ever stared at a blank CAD canvas, wondering how to coax those spiraling ridges into existence, you’re not alone. The frustration is universal. The good news? With the right approach, you can model a threaded cap without losing your sanity—or your hair. Let’s dive into the process, step by step, with the precision of a master watchmaker and the patience of a zen monk.
The Anatomy of a Threaded Cap: More Than Meets the Eye
Before you sketch a single line, it’s essential to understand what you’re actually building. A threaded cap isn’t just a cylinder with a lid; it’s a symphony of geometric precision. At its core, it consists of two primary components: the cap itself and the threaded interface that mates with the container. The threads, typically helical in nature, are defined by parameters like pitch (the distance between thread peaks), major diameter (the outer diameter of the thread), and minor diameter (the inner diameter).
But here’s where things get interesting. Threads aren’t just spirals—they’re a dance of interlocking geometry. The most common thread types in 3D modeling are metric threads (ISO) and unified threads (UN/UNF). Metric threads, for instance, are defined by their pitch in millimeters, while unified threads use threads per inch (TPI). Choosing the wrong thread type is like trying to fit a square peg into a round hole—it just won’t work. So, before you begin, decide whether you’re modeling a coarse or fine thread, and ensure your container’s threading matches. Mismatched threads are the silent killers of 3D-printed prototypes.
Another critical aspect is the thread engagement—the length of the threaded section that actually interacts with the container. Too short, and the cap will wobble; too long, and you’re wasting material and print time. A good rule of thumb is to aim for at least one full rotation of thread engagement, though this can vary depending on the application. Think of it like a handshake: it needs to be firm but not crushing.
Starting with the Right Tools: CAD Software That Won’t Betray You
Not all CAD software is created equal when it comes to threading. Some programs, like Fusion 360 or SolidWorks, have built-in thread tools that can generate threads automatically. Others, like Tinkercad or Blender, require a more hands-on approach. The key is to choose software that aligns with your skill level and the complexity of your project. If you’re a beginner, start with a program that offers parametric modeling—where dimensions can be adjusted on the fly—so you can tweak your design without starting from scratch.
For this tutorial, we’ll focus on a method that works in most CAD programs, whether you’re using a free tool like FreeCAD or a professional suite like Onshape. The goal is to create a threaded cap that’s both functional and printable, with minimal post-processing. Remember, the software is just a tool; the real magic happens in how you use it.
Before you dive into modeling, sketch out your container’s dimensions. You’ll need to know the outer diameter of the container’s neck, the thread pitch, and the depth of the threaded section. If you’re reverse-engineering an existing container, a caliper can be your best friend. Measure twice, model once—it’s a mantra that saves hours of frustration.
Modeling the Cap: From Cylinder to Threaded Masterpiece

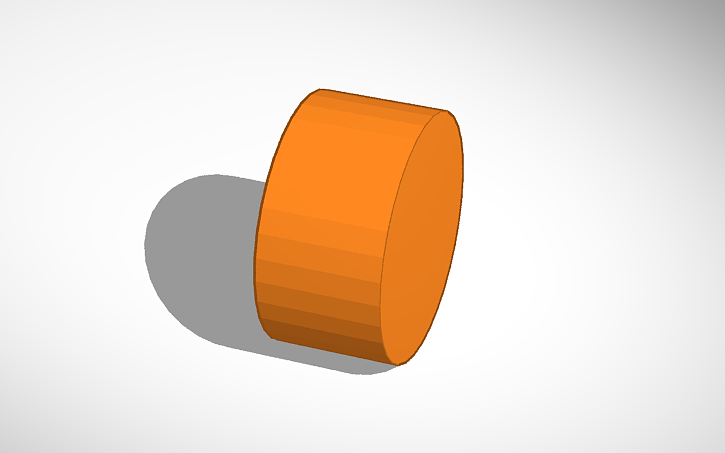

The first step is to create the basic shape of your cap. Start with a cylinder that matches the outer diameter of your container’s neck. The height of this cylinder should account for the threaded section plus a small lip or flange at the top—this lip will give users something to grip when twisting the cap on or off. Think of it as the “handle” of your threaded interface.
Next, you’ll need to create the internal threads. This is where things get tricky. One approach is to use a helical sweep—a tool that extrudes a profile along a spiral path. In most CAD programs, you’ll start by drawing a thread profile (a trapezoidal or triangular shape) and then sweeping it along a helix that matches your thread pitch. The helix should have the same diameter as the minor diameter of your thread, ensuring that the threads interlock correctly with the container.
But here’s a pro tip: if your CAD software supports it, use a thread generator or library. Many programs have pre-built thread standards that you can apply to your model with a few clicks. This not only saves time but also ensures that your threads meet industry standards. If you’re modeling a custom thread, however, you’ll need to create the helix manually. This involves defining the pitch, the number of turns, and the direction of the helix (right-handed or left-handed).
Once the threads are in place, it’s time to add the finishing touches. A small chamfer or fillet at the top and bottom of the threaded section can prevent stress concentrations and make the cap easier to print. Additionally, consider adding a small vent hole or pressure equalization feature if your design will be used for airtight containers. This prevents vacuum lock, which can make opening the cap a Herculean task.
Tolerances and Clearances: The Invisible Hand of Precision
This is where many beginners stumble—and where seasoned engineers earn their stripes. Thread tolerances are the unsung heroes of functional 3D-printed parts. Too tight, and the cap won’t screw on; too loose, and it’ll spin freely like a top. The key is to account for the limitations of your 3D printer. Fused deposition modeling (FDM) printers, for example, have a natural layer height that can affect thread engagement. A layer height of 0.2mm might require a slightly larger clearance than a 0.1mm layer height.
As a general rule, aim for a clearance of 0.2mm to 0.3mm between the external threads of the cap and the internal threads of the container. This ensures a snug fit without excessive friction. If you’re printing in flexible materials like TPU, you can reduce the clearance slightly, as the material will compress slightly under pressure. For rigid materials like PLA or ABS, err on the side of slightly more clearance to account for potential warping or dimensional inaccuracies.
Another critical consideration is the thread start. Threads don’t begin at the very edge of the cap; they typically start a short distance in to prevent the first thread from stripping. This distance is often referred to as the “thread run-out” or “thread relief.” A common practice is to leave a small unthreaded section at the bottom of the cap, about 1-2mm in length. This gives the threads a clean starting point and reduces the risk of deformation during printing.
Printing and Testing: From Digital to Physical Reality
Once your threaded cap is modeled, it’s time to bring it to life. But before you hit print, double-check your settings. For FDM printers, use a fine layer height (0.1mm or 0.2mm) and enable “vase mode” if your cap is a single-walled design. This ensures smooth, continuous threads without layer lines that could interfere with the fit. If you’re using resin printing, the tolerances can be tighter, so you may need to adjust your clearances accordingly.
Printing the cap is only half the battle. The real test comes when you try to mate it with your container. If the cap is too tight, sand the threads lightly with fine-grit sandpaper. If it’s too loose, consider increasing the thread engagement or reducing the clearance slightly. Don’t be afraid to iterate—3D printing is as much about experimentation as it is about precision.
One common issue is “thread stripping,” where the threads fail to engage properly due to excessive force or misalignment. To prevent this, ensure your container’s neck is perfectly cylindrical and free of warping. If your container is printed, consider adding a small draft angle to the neck to make it easier to remove from the print bed. A well-printed container will make the threading process smoother and more reliable.
The Philosophy of Threaded Design: Why We Obsess Over the Details
There’s something deeply satisfying about a threaded cap that screws on smoothly, with just the right amount of resistance. It’s a testament to the power of precision and the art of functional design. But why do we fixate on such a small component? Perhaps it’s because threads represent the intersection of form and function—a place where geometry meets utility. A well-designed thread is invisible in its perfection; a poorly designed one is a constant reminder of failure.
Threaded caps also embody the iterative nature of engineering. They’re not static; they evolve with each prototype, each tweak, each failed print. The process of refining a threaded interface teaches patience, attention to detail, and the humility to accept that even the smallest component can derail an entire project. It’s a microcosm of the larger world of design, where the devil truly is in the details.
So the next time you model a threaded cap, remember: you’re not just creating a lid. You’re crafting an experience. You’re ensuring that every twist, every turn, feels intentional. And when it all comes together—when the cap screws on effortlessly, sealing your creation with the quiet confidence of a well-oiled machine—you’ll know that the hours spent tweaking tolerances and refining geometry were worth it. Because in the end, it’s the threads that hold everything together.
